Filesystem Diagrams¶
Master Boot Record¶
Example:
✗ hexdump -C -n 512 sample_images/ntfs_mbr.vhd
00000000 33 c0 8e d0 bc 00 7c 8e c0 8e d8 be 00 7c bf 00 |3.....|......|..|
00000010 06 b9 00 02 fc f3 a4 50 68 1c 06 cb fb b9 04 00 |.......Ph.......|
00000020 bd be 07 80 7e 00 00 7c 0b 0f 85 0e 01 83 c5 10 |....~..|........|
00000030 e2 f1 cd 18 88 56 00 55 c6 46 11 05 c6 46 10 00 |.....V.U.F...F..|
00000040 b4 41 bb aa 55 cd 13 5d 72 0f 81 fb 55 aa 75 09 |.A..U..]r...U.u.|
00000050 f7 c1 01 00 74 03 fe 46 10 66 60 80 7e 10 00 74 |....t..F.f`.~..t|
00000060 26 66 68 00 00 00 00 66 ff 76 08 68 00 00 68 00 |&fh....f.v.h..h.|
00000070 7c 68 01 00 68 10 00 b4 42 8a 56 00 8b f4 cd 13 ||h..h...B.V.....|
00000080 9f 83 c4 10 9e eb 14 b8 01 02 bb 00 7c 8a 56 00 |............|.V.|
00000090 8a 76 01 8a 4e 02 8a 6e 03 cd 13 66 61 73 1c fe |.v..N..n...fas..|
000000a0 4e 11 75 0c 80 7e 00 80 0f 84 8a 00 b2 80 eb 84 |N.u..~..........|
000000b0 55 32 e4 8a 56 00 cd 13 5d eb 9e 81 3e fe 7d 55 |U2..V...]...>.}U|
000000c0 aa 75 6e ff 76 00 e8 8d 00 75 17 fa b0 d1 e6 64 |.un.v....u.....d|
000000d0 e8 83 00 b0 df e6 60 e8 7c 00 b0 ff e6 64 e8 75 |......`.|....d.u|
000000e0 00 fb b8 00 bb cd 1a 66 23 c0 75 3b 66 81 fb 54 |.......f#.u;f..T|
000000f0 43 50 41 75 32 81 f9 02 01 72 2c 66 68 07 bb 00 |CPAu2....r,fh...|
00000100 00 66 68 00 02 00 00 66 68 08 00 00 00 66 53 66 |.fh....fh....fSf|
00000110 53 66 55 66 68 00 00 00 00 66 68 00 7c 00 00 66 |SfUfh....fh.|..f|
00000120 61 68 00 00 07 cd 1a 5a 32 f6 ea 00 7c 00 00 cd |ah.....Z2...|...|
00000130 18 a0 b7 07 eb 08 a0 b6 07 eb 03 a0 b5 07 32 e4 |..............2.|
00000140 05 00 07 8b f0 ac 3c 00 74 09 bb 07 00 b4 0e cd |......<.t.......|
00000150 10 eb f2 f4 eb fd 2b c9 e4 64 eb 00 24 02 e0 f8 |......+..d..$...|
00000160 24 02 c3 49 6e 76 61 6c 69 64 20 70 61 72 74 69 |$..Invalid parti|
00000170 74 69 6f 6e 20 74 61 62 6c 65 00 45 72 72 6f 72 |tion table.Error|
00000180 20 6c 6f 61 64 69 6e 67 20 6f 70 65 72 61 74 69 | loading operati|
00000190 6e 67 20 73 79 73 74 65 6d 00 4d 69 73 73 69 6e |ng system.Missin|
000001a0 67 20 6f 70 65 72 61 74 69 6e 67 20 73 79 73 74 |g operating syst|
000001b0 65 6d 00 00 00 63 7b 9a 83 a1 56 0d 00 00 00 02 |em...c{...V.....|
000001c0 03 00 07 e5 25 00 80 00 00 00 00 38 00 00 00 00 |....%......8....|
000001d0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
*
000001f0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 55 aa |..............U.|
00000200

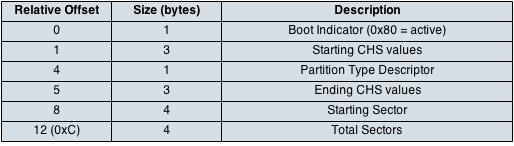

MBR Partition Entry¶
Example:
% hexdump -C -s 0x1be -n 16 sample_images/ntfs_mbr.vhd
000001be 00 02 03 00 07 e5 25 00 80 00 00 00 00 38 00 00 |......%......8..|
GUID Partition Table¶

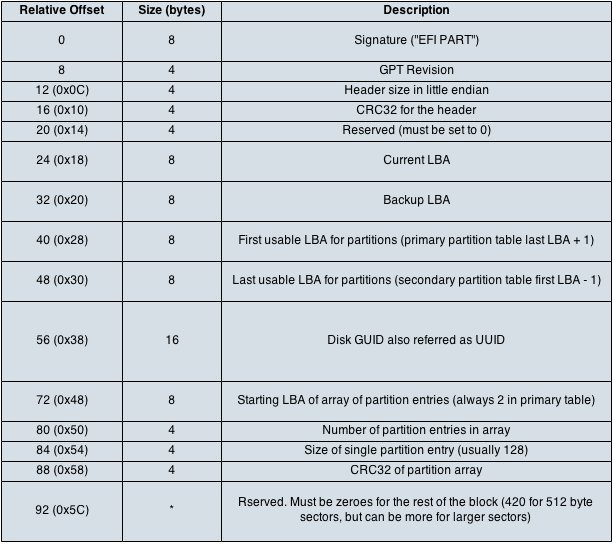

GPT Header¶
Example:
>>> from rawdisk.scheme.gpt import Gpt
>>> gpt = Gpt()
>>> gpt.load('sample_images/ntfs_primary_gpt.bin')
>>> gpt.header.hexdump()
00000000: 45 46 49 20 50 41 52 54 00 00 01 00 5C 00 00 00 EFI PART....\...
00000010: 99 24 C1 58 00 00 00 00 01 00 00 00 00 00 00 00 .$.X............
00000020: FF FF 03 00 00 00 00 00 22 00 00 00 00 00 00 00 ........".......
00000030: DE FF 03 00 00 00 00 00 E5 66 99 AF FB 00 CD 45 .........f.....E
00000040: BE 63 26 2D 91 88 DC E7 02 00 00 00 00 00 00 00 .c&-............
00000050: 80 00 00 00 80 00 00 00 62 5A F4 F0 ........bZ..
>>> gpt.header.size
92
GPT Partition Entry¶
Example:
>>> from rawdisk.scheme.gpt import Gpt
>>> gpt = Gpt()
>>> gpt.load('sample_images/ntfs_primary_gpt.bin')
>>> gpt.partition_entries[1].hexdump()
00000000: A2 A0 D0 EB E5 B9 33 44 87 C0 68 B6 B7 26 99 C7 ......3D..h..&..
00000010: 19 67 C5 5C 2B 2E 46 4A B4 55 C5 C2 6E 74 67 5C .g.\+.FJ.U..ntg\
00000020: 80 00 01 00 00 00 00 00 7F F0 03 00 00 00 00 00 ................
00000030: 00 00 00 00 00 00 00 00 42 00 61 00 73 00 69 00 ........B.a.s.i.
00000040: 63 00 20 00 64 00 61 00 74 00 61 00 20 00 70 00 c. .d.a.t.a. .p.
00000050: 61 00 72 00 74 00 69 00 74 00 69 00 6F 00 6E 00 a.r.t.i.t.i.o.n.
00000060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
00000070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
